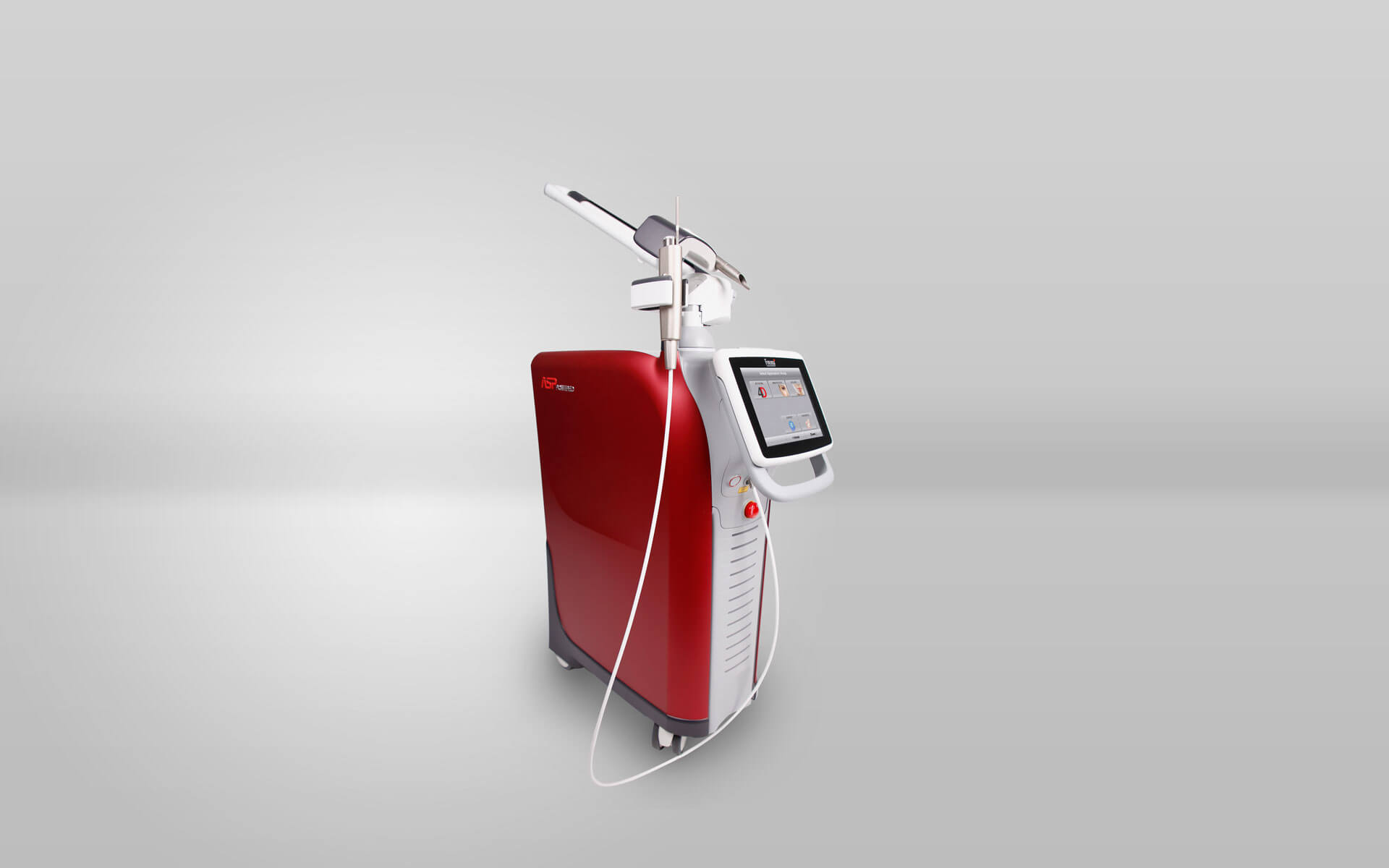

TimeWalker® Fotona4D®
Non-invasive Laser Facelift
uZEy4I0mUEk
TimeWalker® is a next-generation Er:YAG and Nd:YAG aesthetic laser dedicated to facial aesthetic treatments. With a unique combination of Fotona’s advanced laser technology and proprietary ASP-powered treatment modes, TimeWalker® is designed and optimized for non-invasive facelifting procedures such as Fotona4D®, SmoothEye® and LipLase®.
Safe and Highly Effective Er:YAG
TimeWalker® is equipped with an advanced, high-performance Er:YAG laser featuring ASP-powered technology that enables non-ablative treatments with thermal regeneration modalities using patented intense heatshock biomodulation (i-HBM), as well as ablative treatments with precise modulation of ablation and coagulation depths.
Unique, Patented Fotona SMOOTH® Technology
Patented Fotona SMOOTH® Er:YAG laser pulses activate a unique form of non-ablative thermal stimulation with a gentle dual-tissue regeneration process to achieve highly controlled and safe collagen tightening and new collagen formation within the tissue. Patients will observe an immediate tightness and freshness as well as a prolonged rejuvenation effect, making it ideal for maintenance treatments as well.
With additional functions ranging from cold minimally ablative to hot deep ablative peels, and from full-field to fractional resurfacing, treatments can be tailored to any specific skin condition to achieve exceptional results.
Gold-Standard Nd:YAG with Patented PIANO® and FRAC3® Pulse Technology
The Nd:YAG laser included with TimeWalker® perfectly complements the Er:YAG laser’s ablative action with the ability to penetrate deeply into the skin to create thermal effects without damaging the skin surface.
TimeWalker’s next-generation, super-extended PIANO® mode provides full-thickness bulk heating for safe and controlled tightening of the dermis and epidermis, while sparing the skin from unnecessary thermal damage.
And Fotona’s revolutionary FRAC3® technology produces a three-dimensional fractional pattern in the epidermis and dermis, selectively targeting specific tissue chromophores for treatment of deeper, age-related skin imperfections, initiating neocollagenesis and healing without damaging the epidermis, regardless of skin type.
Two Models to Choose From:
- TimeWalker® Fotona4D®
- TimeWalker® Fotona4D® PRO
TimeWalker® Fotona4D® for all non-invasive facial treatments: Fotona4D®, SmoothEye® and LipLase®.
TimeWalker® Fotona4D® PRO offers a complete facial rejuvenation approach with non-invasive rejuvenation treatments, plus ablative full and fractional peelings, scar treatments, facial vascular lesions, active acne and rosacea and more.
| TimeWalker® Fotona4D® | TimeWalker® Fotona4D® PRO | |||
| Power / Energy | Modalities | Power / Energy | Modalities | |
| 2940 nm | 12 W, 0.9 J | MSP, SMOOTH | 20 W, 1.5 J | MSP, SP, LP, VLP, SMOOTH |
| 1064 nm | 30 W, 10 J | FRAC3, PIANO | 30 W, 20 J | FRAC3, PIANO, VERSA, LLLT |

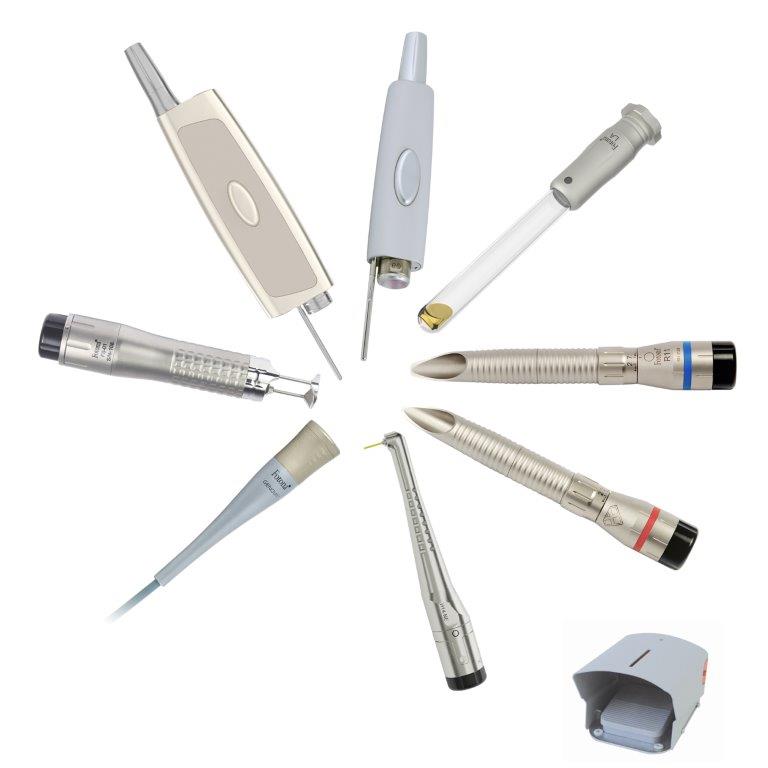

Advanced Handpiece Technology for Unrivaled Control
Designed with the highest quality bio-compatible materials such as titanium and gold, Fotona's innovative handpiece technology optimizes the delivery of laser pulses to the treatment area.
Key Treatments
Accessories
PS03X
Medical grade titanium accessories.
* For the availability in the US please check with the US representative.
Accessories
Clinical Results
Clinical Results
Fotona4D®
Courtesy of: Adrian Gaspar, MD
Laser source: TwinLight®: Nd:YAG (1064 nm) + Er:YAG (2940 nm)
Fotona4D®
Courtesy of: Pham Huu Nghi, MD, PhD - Vietnam
Laser source: TwinLight®: Nd:YAG (1064 nm) + Er:YAG (2940 nm)
Fotona4D®
Courtesy of: Adrian Gaspar, MD
Laser source: TwinLight®: Nd:YAG (1064 nm) + Er:YAG (2940 nm)
Fotona4D®
Courtesy of: Adrian Gaspar, MD
Laser source: TwinLight®: Nd:YAG (1064 nm) + Er:YAG (2940 nm)
Fotona4D®
Courtesy of: Harvey Shiffman, MD
Laser source: TwinLight®: Nd:YAG (1064 nm) + Er:YAG (2940 nm)
What is VSP?
VSP (Variable Square Pulse) technology is a patented solution for generating square laser pulses for more controlled energy absorption. Pulse durations can be adjusted from 50 us up to 1500 us, depending on the practitioner’s needs. VSP pulse technology minimizes unnecessary laser energy absorption into body tissues and helps to ensure ultimate performance and patient comfort during laser treatments.
Testimonials
 | “I have been impressed by Fotona4D®’s versatility and efficiency, especially for bulk heating in PIANO mode. “I can heat the skin so much more efficiently than with anything else out there. It saves me time, numbing cream and pain management”. “In my experience it’s proven to be one of the most efficient, least costly methods of skin tightening for me as a provider. It’s about doing more for our patients and practices, and Fotona4D® enables us to accomplish these objectives.” — Dr. Mark B. Taylor | ||
 | MULTI-DIMENSIONAL CHOICE “The Fotona4D® facelift gives the physician a new and powerful non-invasive therapy. With Fotona4D®, our patients now have a multi-dimensional choice of safe and effective treatment options for their aesthetic needs. Fotona4D® provides a comfortable and painless treatment that does not require consumables or downtime.” — Adrián Gaspar, MD | ||
 | NATURAL LOOKING RESULTS “I love that I can provide my patients with long lasting, natural looking results. I am able to tighten, volumize and restore collagen to the face while improving skin tone and texture to restore my patients’ youthful appearance without the risk of injectables and no downtime. My patients are delighted with the ‘natural glow’ of their new skin!” — Tania Phillips, MD | ||
 | | “Fotona4D® face-lifting tackles problems of laxity around the mouth and jowls, which other systems or surgery will find difficult to address. This is a relatively painless procedure with no downtime.” |
Scientific & Clinical Research Library: *
Fotona4D®
Histological Changes in Skin During the Process of Aging and Improvements Observed with the Use of Combined Laser Radiation. Natalia Shanina. J LA&HA - J Laser Health Acad 2018; 2018(1):S09. Read Full Text.
Correction of nasolabial folds wrinkle using intraoral non-ablative Er:YAG laser. Howyda ME, Khaled G. Journal of Cosmetic and Laser Therapy (2018). 20:6, 364-368. Read Full Text.
Optical coherence tomographic (OCT) evaluation of intraoral non-ablative erbium: YAG laser (SMOOTH mode) in rejuvenation of nasolabial folds; A prospective randomized split face comparative pilot study. Moftah N., Samy N., Allam R.S.H.M., El Tagy S.A.H., Abdelghani R. Skin Res Technol. 2019;00:1-8. Read Full Text.
Tightening of Facial Skin Using Intraoral 2940 nm Er:YAG SMOOTH Mode. Adrian Gaspar, Gustavo Alfaro Gasti. J LA&HA - J Laser Health Acad 2013; 2013(2):17-20. Read Full Text.
Intra- and Extraoral Treatment for Rejuvenation of the Nasolabial Fold and Perioral Wrinkles. Claudia M. Pidal. J LA&HA – J Laser Health Acad 2012, 2012(1), B20. Read Full Text.
Photo-Thermal Hormetic Rejuvenation with 1064 nm Nd:YAG PIANO Pulse Laser. Marini L, Alexiou A. J LA&HA - J Laser Health Acad 2012; 2012(1):75-79. Read Full Text.
The effect of intraoral 2,940nm nonablative Erbium:YAG laser on the rejuvenation of the upper lip: a pilot study. Natacha Quezada Gaón, Fernanda Binfa. Surg Cosmet Dermatol 2017;9(1):56-8. Read Full Text.
CLINICAL BULLETIN: PIANO Mode Nd:YAG Laser Skin Tightening. Taylor M. Journal of the Laser and Health Academy, Vol. 2013, No.2. Read Full Text.
CASE REPORT: Clinical experience with FRAC3 Non-ablative Skin Tightening. Gansel R. Journal of the Laser and Health Academy, Vol. 2012, No.1. Read Full Text.
New Skin Treatment Possibilities with PIANO Mode on an Nd:YAG Laser. Lukac M, Vizintin Z, Pirnat S, Nemes K. Journal of the Laser and Health Academy, Vol. 2011, No.1. Read Full Text.
Pixel Screen Technology and FRAC3 – A Full Spectrum of Laser Skin Rejuvenation Treatments. Gorjan M, Grad L, Lukac M. Journal of the Laser Health Academy, Vol. 2008, No.1 Read Full Text.
SmoothEye®
SmoothEye – Periocular Rejuvenation with Er:YAG SMOOTH Mode. Phillips T. J LA&HA - J Laser Health Acad 2018; 2018(1):CB05. Read Full Text.
Reduction of the Volume and Wrinkles under the Eyes using Non-Ablative 2940 nm Er : YAG Laser on the Lower Eyelid Palpebral Conjunctiva. Kim J, Zorman A. Journal of LA&HA. 2018;2018(1):36-38. Read Full Text.
Non-Surgical Periorbital Rejuvenation – A Holistic Approach. Lucas LC Chia. J LA&HA - J Laser Health Acad 2018; 2018(1):S11. Read Full Text.
Effect of pulse width of a variable square pulse (VSP) erbium:YAG laser on the treatment outcome of periorbital wrinkles in Asians. Woraphong Manuskiatti, Sujittra Siriphukpong, Supenya Varothai, Rungsima Wanitphakdeedecha, and Richard E. Fitzpatrick. International Journal of Dermatology 2010, 49, 200–206. Read Full Text.
Collagen synthesis after laser skin resurfacing of the periocular skin. Matej Beltram, Marko Živin, Brigita Drnovšek-Olup. Zdrav Vestn Supl, 2010, 79, 111 –116. Read Full Text.
New Rejuvenation of the Lips with Erbium:YAG and Nd:YAG laser. Natasa Teovska Mitrevska. J LA&HA - J Laser Health Acad 2018; 2018(1):S10. Read Full Text.
LipLase®
New Rejuvenation of the Lips with Erbium:YAG and Nd:YAG laser. Natasa Teovska Mitrevska. J LA&HA - J Laser Health Acad 2018; 2018(1):S10. Read Full Text.
The effect of intraoral 2,940nm nonablative Erbium:YAG laser on the rejuvenation of the upper lip: a pilot study. Natacha Quezada Gaón, Fernanda Binfa. Surg Cosmet Dermatol 2017;9(1):56-8. Read Full Text.
LipLase® Lip Enhancement Procedure. Shiffman H. Journal of LA&HA. 2015;2018(1):B03. Read Full Text.
Active Acne
Treatment of Acne Vulgaris with 1064 nm Nd:YAG Laser. Ganceviciene R, Meskauskas R, Berzanskyte A. Journal of LA&HA. Vol. 2015, OnlineFirst. Read Full Text.
CASE REPORT: Treatment of Acne Vulgaris with Long-Pulsed 1064 nm Nd:YAG Laser. Sult R. Journal of LA&HA, 2014. Vol.2014(1):57-60. Read Full Text.
Successful therapy of excoriated acne with Nd:YAG laser: a case report. Tlaker, V. Acta dermatovenerologica Alpina, Pannonica, et Adriatica, 26(3), pp.73–75. Read Full Text.
Acne Scars
Evaluation of effectiveness of erbium:yttrium–aluminum–garnet laser on atrophic facial acne scars with 22‐MH z digital ultrasonography in a Turkish population. Burhan Engİn, Zekayi Kutlubay, Özge Karakuş, Gürkan Yardimci, Zafer Doğan, Yalçın Tüzün, Server Serdaroğlu. The Journal of Dermatology 2012; 39: 982–988. Read Full Text.
Resurfacing of Facial Acne Scars With a New Variable-Pulsed Er:YAG Laser in Fitzpatrick Skin Types IV and V. Chathra N, Mysore V. J Cutan Aesthet Surg. 2018;11(1):20-25. doi:10.4103/JCAS.JCAS_4_18. Read Full Text.
Other
Minimally Invasive Skin Rejuvenation With Erbium: YAG Laser Used in Thermal Mode. Karin Kunzi-Rapp, Christine C. Dierickx,Bernard Cambier, and Michael Drosner. Lasers in Surgery and Medicine 38:899–907 (2006). Read Full Text.
Dual Tissue Regeneration: Non-Ablative Resurfacing of Soft Tissues with FotonaSmooth® Mode Er:YAG Laser. Matjaz Lukac, Adrian Gaspar, Franci Bajd. J LA&HA - J Laser Health Acad 2018; 2018(1):01-15. Read Full Text.
* Certain applications discussed in this scientific literature may not yet be cleared by the FDA.
Additional Resources: visit the Laser and Health Academy* website for additional information about medical laser treatments that can be performed with Fotona laser systems.
