LightWalker® II
The Ultimate All-in-One Hard- and Soft-Tissue Laser
1005837567
LightWalker II is a revolutionary dental laser system, incorporating state-of-the-art technologies that redefine the industry. With 20 W of power, 2 wavelengths, 5 pulse durations, and 4 special pulse modalities, LightWalker II offers dentists an unparalleled range of clinical applications.
- Dual-wavelength laser system for superior clinical results
- Suggested pre-settings for more than 80 different applications
- Advanced technology for efficacy and safety
- For use in dentistry and aesthetics
- Suitable for first-time users & advanced practitioners
Perfection in Laser Dentistry
Each LightWalker model is a technologically advanced system built from the ground up with the most state-of-the-art and reliable technologies available. LightWalker comes equipped with dentistry’s "gold standard" Er:YAG and Nd:YAG laser wavelengths for the most comprehensive list of clinical applications of any dental laser made today. The system's award-winning design, advanced engineering and patented technologies have made it the world's fastest-cutting Erbium laser, offering a wide range of highly effective hard- and soft-tissue treatments. Easy-to-select operating modes and innovative laser-beam delivery systems enhance the precision and performance of each laser treatment for optimal clinical efficacy.
Broad Spectrum of Effective and Easy-to-Perform Applications
The LightWalker II user interface offers a simple menu of laser treatments. You select the desired treatment using the 10.1 inch touchscreen and the laser automatically suggests the preset starting parameters. With easy-to-follow protocols and one-touch treatment settings, you’ll be able to perform every dental procedure with confidence and high success rates, bringing in extra income to your practice along the way.
The two high-end models of the LightWalker family allow for aesthetic skin treatments
such as skin rejuvenation and removal of benign and vascular lesions.
Typical treatments with LightWalker are faster, less painful and easier to perform, with shorter healing times compared to conventional treatments.
Exceptional Laser Power – for the Fastest Working Speed
Up to 20 W* of Er:YAG laser power provide an exceptionally wide range of fast, safe and effective treatment options. With the advent of ASP technology and higher peak power, the LightWalker ATS model has established a new standard for ablation/cutting speed. This provides today’s dentists with the precision and performance they demand, while simultaneously increasing patient comfort.
TwinLight® Treatment Concept
The combination of the two most ideal wavelengths in one laser system enables practitioners to perform not only single-wavelength but also dual-wavelength (TwinLight®) treatments. Utilizing both wavelengths in a treatment makes optimum use of the unique laser-tissue interaction characteristics of each wavelength. For example, Nd:YAG laser energy is superior for coagulation and deep disinfection while Er:YAG is uniquely efficient at ablating hard and soft tissues. Combined, they can greatly expand the range of treatment possibilities and dramatically improve the outcome of laser-assisted treatments.
Embrace the future of dental laser technology with Fotona's LightWalker, empowering dentists with unparalleled versatility for enhanced patient care.
See the LightWalker II brochure for more details.
Key Treatments
Accessories
H02-N
Tipless (non-contact), 90°-angled Er:YAG handpiece, 0.9 mm spot size at the focal point, with integrated air/water spray nozzle. Designed for LightWalker AT / AT S.
H14-N
Dental, fiber-optic tip, 90° degree Er:YAG handpiece with integrated air/water spray nozzle, designed for the LightWalker AT / S. Compatible with a wide range of application-specific fiber tips. Click here to see the range of fiber tips that can be used with the H14 handpiece.
H14-NS
Dental, fiber-optic tip, straight Er:YAG handpiece with integrated air/water spray nozzle. Compatible with a wide range of application-specific fiber tips. Click here to see the range of fiber tips that can be used with the H14-NS handpiece.

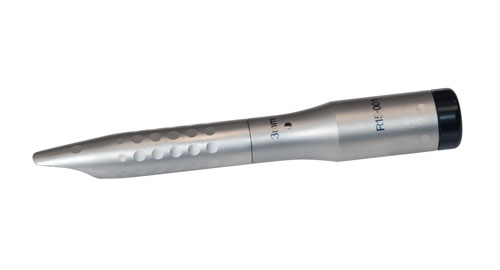

R15
Dermatological, straight handpiece, with collimated beam at 3 mm spot size, designed for the LightWalker AT / AT S.

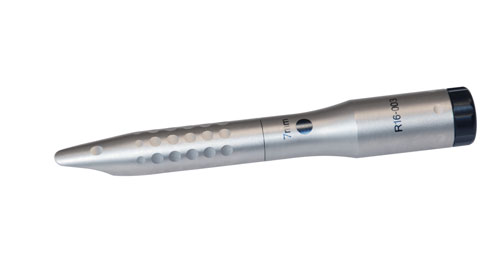

R16
Dermatological, straight handpiece with collimated beam at 7 mm spot size, designed for the LightWalker AT / AT S.
R17
The R17 is a tipless (non-contact) handpiece designed for TouchWhite™ tooth whitening with LightWalker AT / AT S.

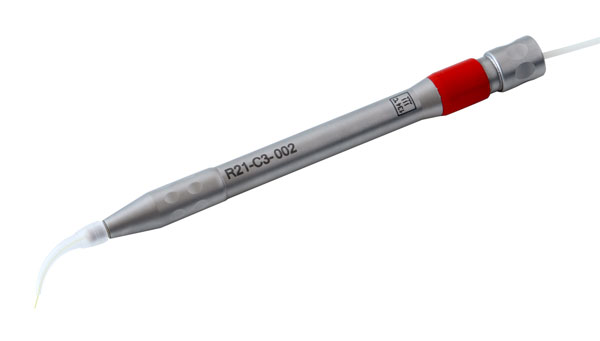

R21-C3
Dental, contact 300 µm fiber-optic handpiece. Uses reusable stainless steel or plastic disposable tips.

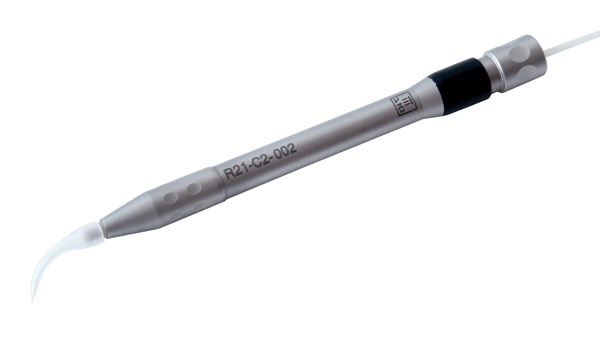

R21-C2
Dental, contact 200 µm fiber-optic handpiece. Uses reusable stainless steel or plastic disposable tips.
MarcCo™
The Latest Line of Handpieces for Photobiomodulation and Pain Management
- Enables fast, effective and non-invasive treatments
- Delivers a unique, collimated & homogenous beam profile
- Sterilizable spacers offer increased safety
- Modern ergonomic design

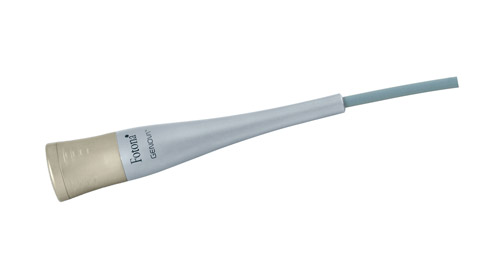

Genova™
The Genova handpiece was specially developed for Fotona's LightWalker laser system for inducing highly effective wound healing and pain reduction. The handpiece creates a large spotsize with a unique collimated homogeneous beam profile of Nd:YAG laser light.

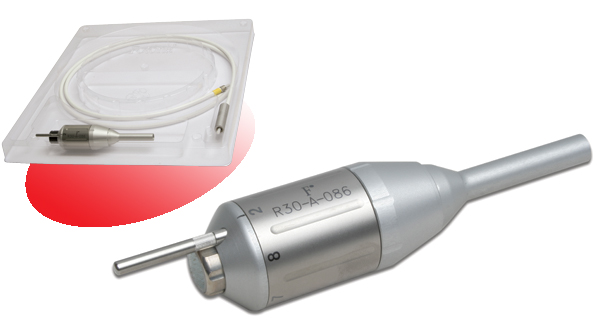

R30-A
The R30-A Nd:YAG aesthetics and dermatological handpiece has a variable spotsize from 2 to 8 mm.

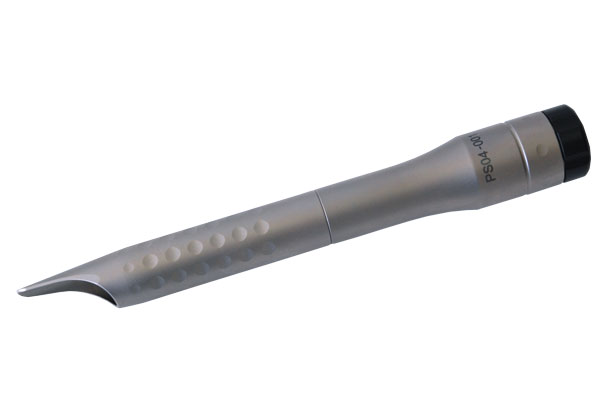

PS04
The PS04 is a tipless (non-contact) Er:YAG handpiece for the LightWalker AT / AT S system. The PS04 generates a pixel structure within the laser spot. The fluence in each pixel can be set by selecting the fluence value on the host laser system.
Wireless Footswitch
With the wireless footswitch the laser treatment can be initiated within a 10-meter radius of the Fotona laser system, thereby avoiding an unnecessary tangle of cables on the operating room floor. The wireless footswitch is a perfect complement to your Fotona system, providing more freedom of movement during treatments.
Clinical Results
Clinical Results
Hemangioma and Fibroma Treatment
Courtesy of: Assist. Prof. Dragana Gabric, DMD, PhD
Laser source: TwinLight®: Nd:YAG (1064 nm) + Er:YAG (2940 nm)
Leukoplakia Treatment
Courtesy of: Assist. Prof. Dragana Gabric, DMD, PhD
Laser source: Er:YAG (2940 nm)
Peri-implant Mucositis
Courtesy of: Bogdan Crisan, DMD, PhD
Laser source: TwinLight®: Nd:YAG (1064 nm) + Er:YAG (2940 nm)
Peri-implantitis
Courtesy of: Aslan Gokbuget, DDS, PhD
Laser source: TwinLight®: Nd:YAG (1064 nm) + Er:YAG (2940 nm)
Scientific & Clinical Research Library:
General Dentistry
REVIEW: The TwinLight™ Concept in Dentistry - Read Full Text.
Maden I, Maden O E, Kazak Z. Journal of the Laser and Health Academy, Vol. 2013, No.1, PP. 11-16.
Laser dentistry: the Ideal Solution for Faster Treatment of More Patients - PDF | 5 MB
World Dental Reporter, February-March 2010.
State of the Art in Lasers for Dentistry - Read Full Text.
Gutknecht N. Journal of the Laser and Health Academy, Vol. 2008; No.3/2.
Highest Performance in Dental Care - PDF | 281 kB
DPR, September 2008.
Conservative Dentistry
CASE REPORT: Laser Applications with an Er:YAG Dental Laser and X-Runner Handpiece - Read Full Text.
Birlik M, Karamehmetoglu H, Usumez A. Journal of the Laser and Health Academy, Vol. 2013, No. 2, PP. 31-33.
Quantum Square Pulse Mode Ablation Measurements with a Digitally Controlled Er:YAG Dental Laser Handpiece - Primc N M, Lukac M. Journal of the Laser and Health Academy, Vol. 2013, No. 1, PP. 1-5. - Read Full Text.
Microleakage of Composite Resin Restorations in Class V Cavities Etched by Er:YAG Laser with Different Pulse Modes
Donmez N, Siso S H, Usumez A. Journal of the Laser and Health Academy, Vol. 2013, No. 1, PP. 6-10. - Read Full Text.
Quantum Square Pulse Er:YAG Lasers for Fast and Precise Hard Dental Tissue Preparation - Read Full Text.
Lukac M, Malej-Primc N, Pirnat S. Journal of the Laser and Health Academy, Vol. 2012, No. 1, PP. 14-21.
REVIEW: Comparison of Er:YAG and Er,Cr:YSGG Lasers Used in Dentistry - Read Full Text.
Diaci J, Gaspirc B. Journal of the Laser and Health Academy, Vol. 2012, No.1, PP. 1-13.
A Novel Quantum Square Pulse (QSP) Mode Erbium Dental Laser - Read Full Text.
Gutknecht N, Lukac M, Marincek M, Perhavec T, Kazic M. Journal of the Laser and Health Academy, Vol. 2011, No.1, PP. 15-21.
Dental laser drilling: Achieving optimum ablation with the latest generation Fidelis laser systems - Read Full Text.
Lukac M, Marincek M, Grad L. Journal of the Laser and Health Academy, Vol. 2007, No. 7/2.
Comparison of Heat Deposition of Er:YAG and Er,Cr:YSGG Lasers in Hard Dental Tissues - Read Full Text.
Perhavec T, Diaci J. Journal of the Laser and Health Academy, Vol. 2009, No.2-1.
Laser Profilometry for the Characterization of Craters Produced in Hard Dental Tissues by Er:YAG and Er,Cr:YSGG Lasers - Read Full Text.
Diaci J. Journal of the Laser and Health Academy, Vol. 2008; No.2/2.
Endodontics
REVIEW: Photoacoustic Endodontics using PIPS™: experimental background and clinical protocol - Read Full Text.
Olivi G, DiVito E. Journal of the Laser and Health Academy, Vol. 2012. No. 1. PP. 22-25.
TwinLight™ Laser Assisted Endodontics - PDF | 100 kB
Simunovic K. International Magazine of Laser Dentistry, Issue 2/2011.
TwinLight™ Endo Treatment - How Er:YAG Completes our Nd:YAG Endoprotocol - Read Full Text.
Simunovic K. Journal of the Laser and Health Academy, Vol. 2011. No. 1.
Lasers in Endodontics - Read Full Text.
Gutknecht N. Journal of the Laser and Health Academy, Vol. 2008; No.4/2.
Surgery & Periodontics
Clinical Cases of Soft-Tissue Surgery with X-Runner in QSP Mode - Read Full Text.
Gabric-Panduric D, Katanec D, Filipovic-Zore I. Journal of the Laser and Health Academy, Vol. 2013, No. 2, PP. 34-37.
Unerupted Tooth Exposure Using Two Complementary Wavelengths - Read Full Text.
Fornaini C. LAHA Clinical Bulletin 14/09.
Clinical Comparison of Two Laser Wavelengths in the Treatment of Periodontal Disease - PDF | 2 MB
Kaminer R. International Magazine of Laser Dentistry, Special Edition. 1/2011.
Minimally Invasive Treatment of Periodontitis - PDF | 1 MB
World Dental Reporter, September 2010.
Pediatric Dentistry
Tooth Restoration - A Pediatric Case to Demonstrate the Benefits of Using Two Complementary Wavelengths - PDF | 163 kB. Fornaini C. LAHA Clinical Bulletin 13/09.
Cosmetic Dentistry
CASE REPORT: Aesthetic Treatment of Gingival Hyperpigmentation by Er:YAG Laser - Read Full Text.
Ozturan S, Usumez A. Journal of the Laser and Health Academy, Vol. 2013, No.1, PP. 52-54.
CASE REPORT: Office Bleaching with Er:YAG Laser - Read Full Text.
Sari T, Usumez A. Journal of the Laser and Health Academy, Vol. 2013, No.1, PP. 55-57.
A Novel Er:YAG Laser-Assisted Tooth Whitening Method - Read Full Text.
Gutknecht N, Franzen R, Meister J, Lukac M, Pirnat S, Zabkar J, Cencic B, Jovanovic J.
Journal of the Laser and Health Academy, Vol. 2011, No.1, PP. 1-10.
Dental Articles - Additional References - PDF | 104 kB
Additional Resources: visit the Laser and Health Academy* website for additional information about medical laser treatments that can be performed with Fotona laser systems.
